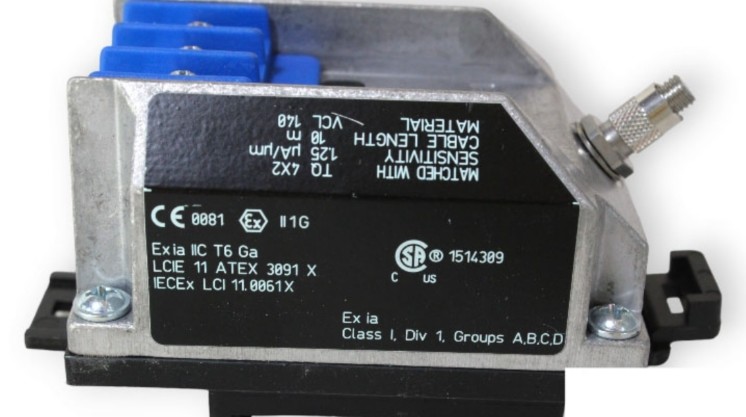

IQS450 204-450-000-001 A1-B21-H10-I0 Proximity Measurement System

IQS450 204-450-000-001 A1-B21-H10-I0 Proximity Measurement System

Features:

Output Voltage output, 3-wire configuration

Voltage at min. GAP : −1.6 V

• Voltage at max. GAP : −17.6 V

• Dynamic range : 16 V

• Output impedance : 500 Ω

• Short-circuit current : 45 mA

Current output, 2-wire configuration

• Current at min. GAP : −15.5 mA

• Current at max. GAP : −20.5 mA

• Dynamic range : 5 mA

Output capacitance : 1 nF

Output inductance : 100 µH

Supply Voltage output, 3-wire configuration

• Voltage : −20 to −32 V*

• Current : −13 mA ±1 mA (−25 mA max.)

Current output, 2-wire configuration

• Voltage : −20 to −32 V*

• Current : −15.5 to −20.5 mA

Supply input capacitance : 1 nF

Supply input inductance : 100 µH

Description:

The IQS450 signal conditioner will operate at ambient temperatures as high as 85°C, but to do so, it requires derating of the maximum input voltage. The IQS450 must operate between the minimum supply voltage and the maximum supply voltage, as shown on the following graph.

The system is based around a TQ401 non-contact sensor and an IQS450 signal conditioner. Together, these form a calibrated proximity measurement system in which each component is interchangeable. The system outputs a voltage or current proportional to the distance between the transducer tip and the target, such as a machine shaft.
